Silver Headshell, AT-3600L Magnetic Cartridge Stylus Fit for Pioneer PLX-1000 PL-518 PL-530 PL-A35 PLX-500 PL-560 PL-200 PL-516 PL-255 PL-200X XL-A700 PL-A45D
Price: $35.63
(as of Feb 24, 2026 09:01:48 UTC – Details)
Technical Information:
Frequency Response: 20 – 20,000Hz
Channel Separation: 18 dB at 1kHz
Channel Balance: 1.5dB
Recommended Tracking Force: 2.5 – 3.5g
Vertical Tracking Angle: 24°
Recommended Load Impedance: 47kΩ
Output Voltage: 4.2 mV (1kHz / 5cm/sec)
Stylus Shape: Conical
Specification:
Fixing hole spacing: 13mm (measure the centre distance of two holes)
Cartridge terminal: R+, R-, L+, L-
4 Terminals colour: R+=red, R-=green, L+=white, L-=blue
Recommended acupressure range: 1.5g-2g
Features:
1. Premium performance, provides excellent clarity and detailed performance
2. High quality, each cartridge is carefully assembled and tested
3. Protective needle cover for when not in use
Compatible Modles: This cartridge headshell is fit for Pioneer PLX-1000 PL-518 PL-530 PL-A35 PLX-500 PL-560 PL-200 PL-516 PL-255 PL-200X XL-A700 PL-A45D

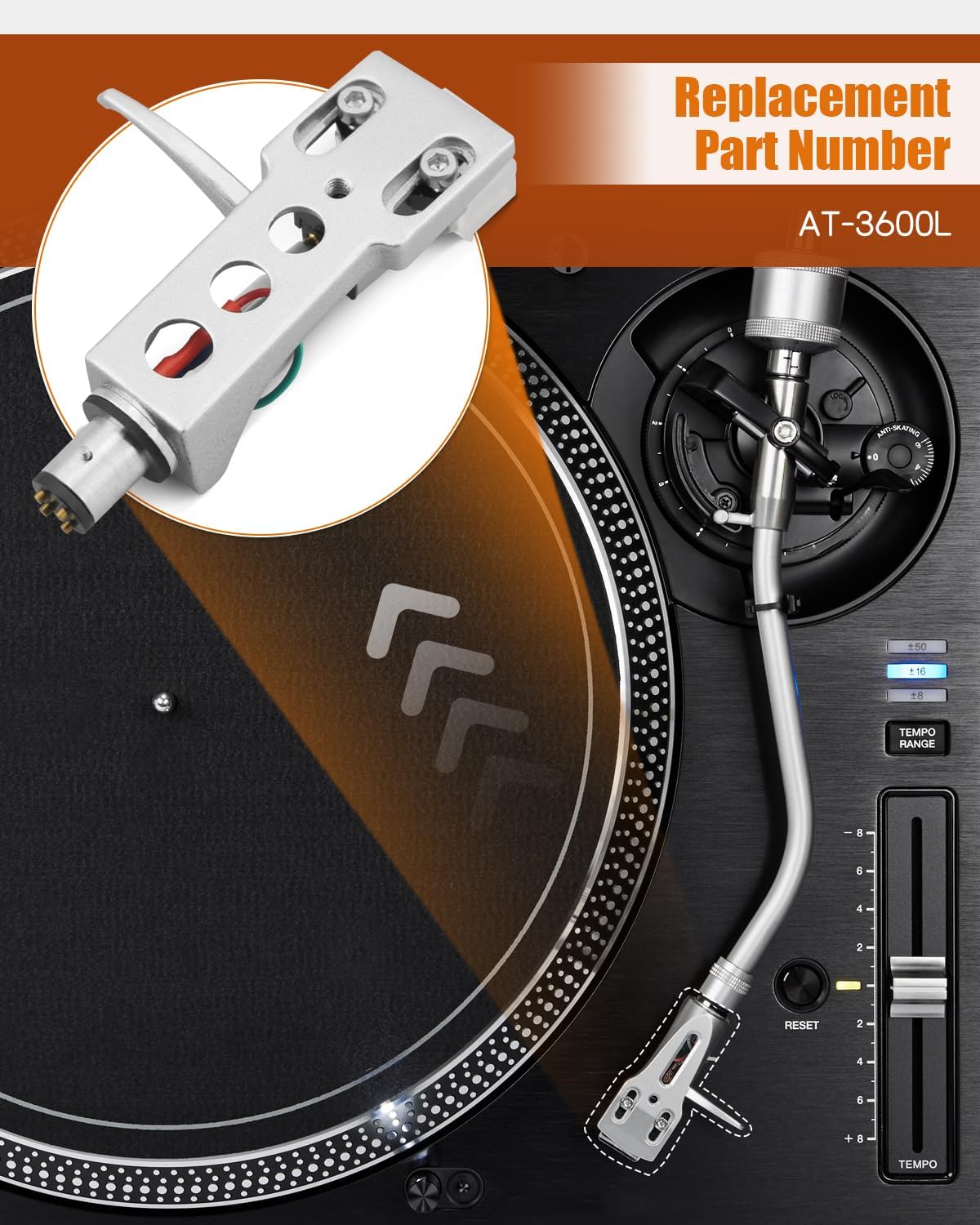

Replacement Part Number: Replace AT-3600L
High-quality Materials: This headshell is made of high-quality raw materials, which is wear-resistant, high-strength and long-lasting
Product Packaging: Silver headshell, AT-3600L cartridge and stylus

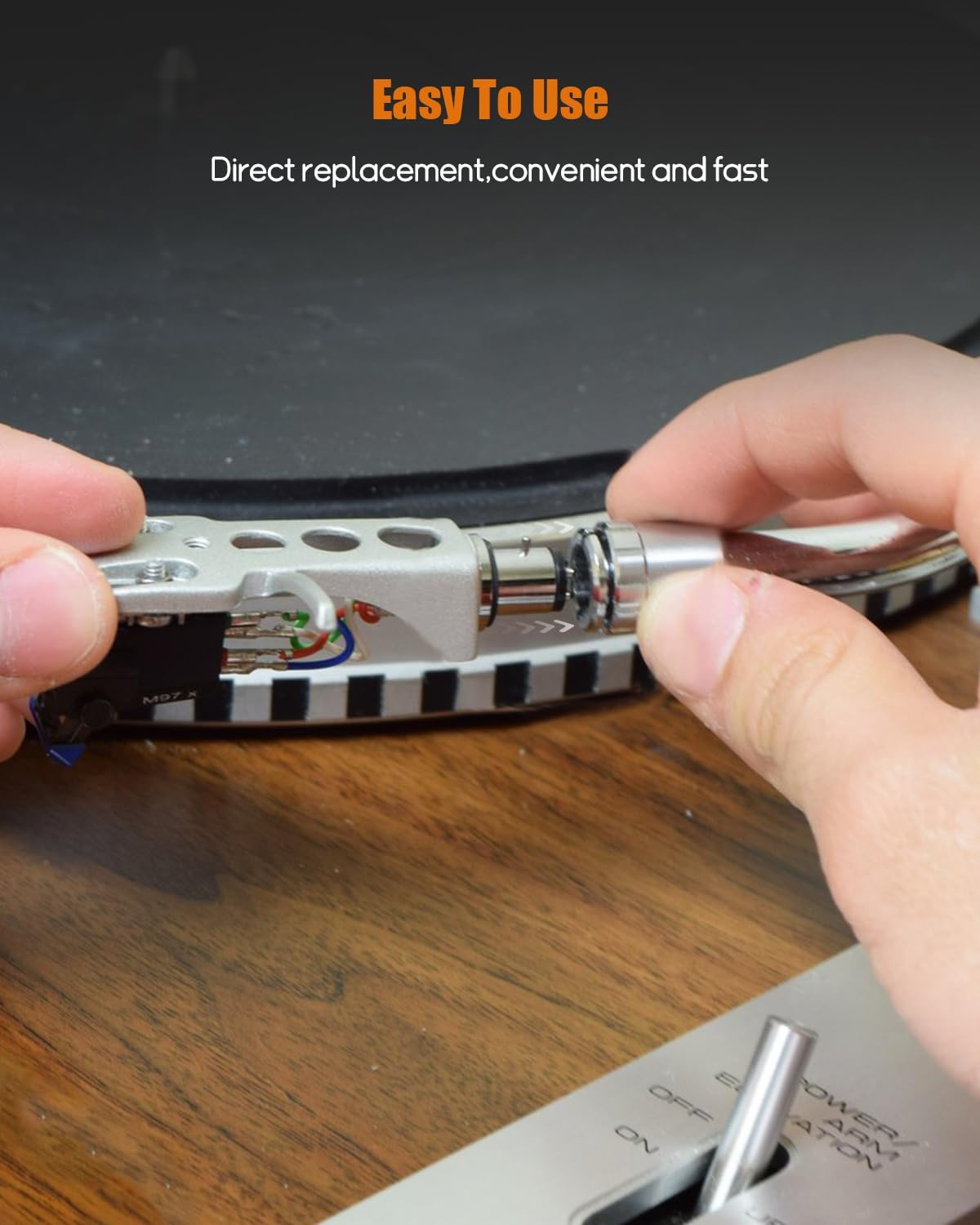

Easy to Install: Just replace the old cartridge, simple and convenient
